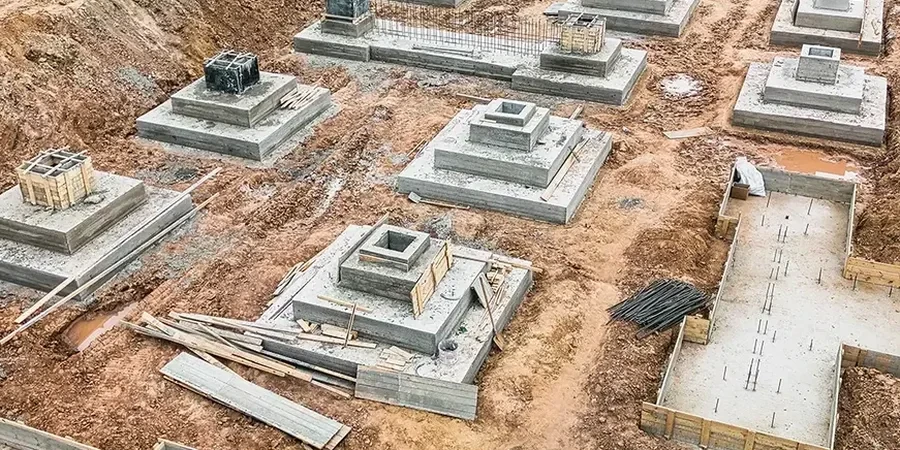

Pile Foundation Design in Richmond Hill: Geotechnical Certainty Below the Surface

Richmond Hill’s transformation from a quiet farming community into one of the GTA’s most sought-after residential and tech hubs has placed extraordinary demands on its subsurface. The rolling topography of the Oak Ridges Moraine, which defines the town’s geography, conceals a complex stratigraphy of glacial till, interbedded sand lenses, and dense silty clays that vary sharply over short distances. When surface soils cannot safely bear structural loads—a condition encountered frequently on the northern slopes near Lake Wilcox and along the Yonge Street corridor—engineers turn to deep foundations. Our pile foundation design service addresses these challenges head-on, developing load-transfer solutions that bypass weak near-surface deposits and anchor into competent strata like the Halton Till or the underlying shale bedrock. Every design is supported by thorough site characterization and aligned with the National Building Code of Canada and CSA A23.3, ensuring that tall mixed-use buildings, bridge abutments, and industrial structures in Richmond Hill are supported with precision from the ground down.

On the Oak Ridges Moraine, pile performance hinges more on pore pressure dissipation and downdrag than on simple end-bearing capacity.

Our service areas

Methodology and scope

The geotechnical profile beneath Richmond Hill is dominated by deposits from the last glacial advance: a veneer of silty sand overlying a stiff to hard clayey silt till that can exceed 25 meters in thickness before reaching the Georgian Bay shale. Groundwater perched within sand seams is common, particularly east of Bayview Avenue, complicating shaft excavation and requiring careful consideration of negative skin friction and downdrag in the design phase. A comprehensive pile foundation design begins with a rigorous field investigation—often incorporating spt-drilling to log stratigraphy and measure blow counts at 1.5-meter intervals, which provides the empirical backbone for capacity estimation. Where the till is heavily overconsolidated and refuses standard penetration, we integrate cpt-test to capture continuous tip resistance and sleeve friction profiles, refining the axial capacity model without the disturbance inherent in sampling. Lateral response under seismic loading, governed by the 2015 NBCC spectral accelerations for southern Ontario, is then analyzed using p-y curve methods to ensure the pile group can accommodate the design earthquake without excessive deflection.

Pile Foundation Design in Richmond Hill: Geotechnical Certainty Below the Surface — Technical reference — Richmond Hill

Local geotechnical context

Richmond Hill’s humid continental climate imposes a distinct seasonal rhythm on deep foundation work. Saturated ground in spring, when frost leaves the upper 1.2 meters and snowmelt elevates the water table, can reduce shaft stability in open-hole drilled shafts and generate artesian conditions in sand pockets that delay concreting. Conversely, the stiff tills that provide such reliable bearing can become unworkably hard during prolonged dry summer spells, increasing drilling torque and bit wear. A subtler risk lies in the long-term performance of piles driven through compressible silt layers: as urbanization continues and groundwater recharge patterns shift, consolidation settlements can induce downdrag forces that erode the design margin if not explicitly accounted for. Our design approach incorporates seasonal constructability reviews and service-life downdrag estimates using the neutral plane framework from the Canadian Foundation Engineering Manual, so that pile systems perform predictably through freeze-thaw cycles and gradual hydrogeological change.

Need a geotechnical assessment?

Reply within 24h.

Email: info@geotechnicalengineering.co

Applicable standards

NBCC 2015 (National Building Code of Canada), CSA A23.3-14 (Design of Concrete Structures), CFEM 4th Edition (Canadian Foundation Engineering Manual), ASTM D1143 (Deep Foundation Load Test Procedures), ASTM D4945 (High-Strain Dynamic Testing of Piles)

Reference parameters

Parameter	Typical value
Design Standard	NBCC 2015 / CSA A23.3-14
Typical Pile Types	Driven H-pile, drilled shaft, helical pile
Bearing Stratum (Richmond Hill)	Halton Till / Georgian Bay Shale
Max Analyzed Depth	35 m (bedrock refusal)
Seismic Site Class	C to D (per site-specific Vs30)
Lateral Analysis Method	p-y curves (Lpile / FB-MultiPier)
Downdrag Evaluation	Neutral plane method (CFEM)
Load Test Correlation	PDA / CAPWAP on indicator piles

Common questions

What is the typical cost range for pile foundation design on a residential lot in Richmond Hill?

For a single-family home or small commercial project, the geotechnical investigation and pile foundation design package generally falls between CA$2,540 and CA$8,600, depending on the number of boreholes, depth to competent bearing stratum, and whether dynamic load testing is required during construction.

How deep do piles typically need to go in Richmond Hill to reach competent ground?

Depth varies considerably across the moraine. In the central plateau near Major Mackenzie Drive, the Halton Till provides excellent bearing at 8 to 15 meters. Closer to the southern valleys and near Lake Wilcox, soft compressible layers can extend to 20 meters or more, and piles are often extended into the underlying Georgian Bay shale at 25 to 35 meters to eliminate settlement concerns.

Which pile type performs best in the local glacial till?

Driven steel H-piles often achieve high refusal on the dense Halton Till and can penetrate cobble-rich layers with less difficulty than augered shafts. Where vibration and noise are restricted—common in the established residential neighborhoods west of Yonge Street—helical piles or drilled shafts with temporary casing are preferred, though they require careful management of groundwater inflow during construction.

Do Richmond Hill buildings require seismic pile design?

Yes. While southern Ontario seismicity is lower than the West Coast, the NBCC 2015 assigns Richmond Hill a 2% in 50-year spectral acceleration that demands explicit lateral pile analysis for structures taller than three storeys. We evaluate kinematic soil-pile interaction and liquefaction potential in saturated sand layers, even though the risk is moderate, to comply with the code’s ductility and serviceability requirements.
